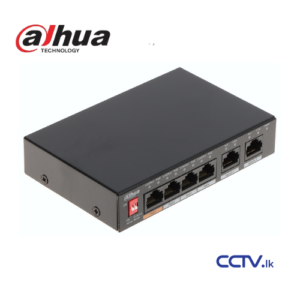

Name: Dahua PFS3005-4ET-60 5-Port Unmanaged Desktop Switch with 4-Port PoE
SKU: PFS3005-4ET-60
Price: 17000.00 LKR
Availability: InStock

-17%

Dahua PFS3005-4ET-60 5-Port Unmanaged Desktop Switch with 4-Port PoE

රු17,000.00

PFS3005-4ET-60
5-Port Unmanaged Desktop Switch with 4-Port PoE

* The parameters and datasheets below can only be applied to V2.0 (version 2.0)

> Intelligent PoE

> Hi-PoE 60W (orange port)

> 8-pin assignment PoE power supply

> Long distance PoE

> PoE watchdog

> Wide working temperature

SKU: PFS3005-4ET-60 Categories: Dahua, Dahua PoE Switch, Network Switches, PoE Switches Tags: dahua, poe switch, switch

Description
Size Guide

Description

Hardware Feature

Ethernet Port

Port 1-4: 4 × RJ-45 10/100M (PoE)

Port 5: 1 × RJ-45 10/100M (uplink)

PoE Power Consumption

Port 1 ≤ 60 W (Hi-PoE)

port 2-4 ≤ 30 W

total ≤ 60 W

Power Consumption

Idling: 0.8 W

Full load: 60 W

Standard

IEEE802.3, IEEE802.3u, IEEE802.3x

PoE

PoE Protocol

IEEE802.3af/ IEEE802.3at/ Hi-PoE

Power Supply Pin

1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)

Long Distance

250 m long distance PoE transmission

PoE Power Management

Yes

PoE Watchdog

Yes

Performance

Switching Capacity

1.8 Gbps

Packet Forwarding Rate

744 Kbps

Packet Buffer Memory

1 Mbit

Flow Control

Enable by default

Working Temperature

–10 °C to +55 °C (+14 °F to +131 °F)

Application Humidity

5%– 95% (RH)

General

Power Input

48 V – 57 V DC

Lighting Protection

Common mode: 4 kV

Differential mode: 2 kV

ESD Protection

Air discharge: 8 kV

Contact discharge: 6 kV

Wall-mount Installation

Yes

Anti-theft Lock Hole

Yes

Weight

0.30 kg (0.64 lb)

Dimension

130 mm × 85 mm × 26 mm (5.12″ × 3.35″ × 1.02″)

Transmission Performance:
Switch power supply voltage 53V. CAT5E/CAT6. Max. DC resistance < 10 Ω/100 m
Cable(m)	Load Capacity(W)	Bandwidth(Mbps)
IEEE802.3bt 90 W
100	71.3	100
150	62	10
200	51	10
250	40	10
Hi-PoE 60 W
100	53	100
150	50	10
200	47	10
250	37	10
IEEE802.3at 30 W
100	25.5	100
150	25.5	10
200	25.5	10
250	25.5	10
Note: Data from this table was collected by Dahua test lab and is for reference only . The actual transmission distance may vary due to power consumption of connected devices or the cable type and status.
